Bottle Labelling Machines
When considering the type of label machines for bottles your business needs, one of the primary aspects you will need to consider is the shape of the product container. The LabelOn™ Flat oval plastic bottle labelling machine is configured for both flat and round bottles and has superb accuracy and ease of setting. If you have flat bottles or oval-sided products needing up to three labels, this oval bottle labelling machine has the design to make the job simple for you.
Our oval bottle labelling machine is a fully automatic labelling machine and comes in a modular design. This allows the machine to be used for different-shaped products, meaning you are no longer limited in your choices and future projects. You also have the capacity to label so many more products as compared to smaller machines, as this powerhouse of a labeler can accommodate more than 10,000 products per week.
The LabelOn™ Flat Oval Plastic Bottle Labeler can be set up with ease and can fit with your already existing production line. With a bit of configuration, this machine can increase your production rates and even efficiency, as you will not need any tools to interchange parts when shifting production to another product. This means that one machine can suit a wide variety of jobs, removing the need for multiple bulky and less efficient machines. This will undoubtedly free up more of your floor space, all while exceeding previous production results.
LabelOn™ label machines for bottles make light work of a heavy workload because it can synchronize its conveyor speed to that of your label feed, assuring you of accurate label placement each and every time.
Labelling Machines for Oval and Flat Bottles
With the LabelOn™ Flat Oval Plastic Bottle Labeler, you gain a powerful, modular bottle labelling machine that will give you a speedy boost in the production roll-out of your multiple products.
The LabelOn™ Flat Oval Plastic Bottle Labeler, configured for Flat bottles and Round bottles, has superb accuracy and ease of setting. If you have Flat bottles or Oval Sided Products needing one, two, or even three labels, this oval bottle labeling machine has the forethought of design to make the job simple to set up again and again.

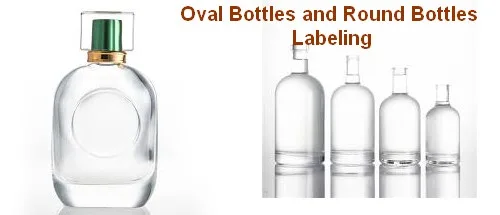

Oval Bottles and Round Bottles
The picture hints at our thinking – which is to design for the real world; not unrealistic hopes that the bristles of a fixed wipe down brush will apply even pressure on a curved surface (in this case the curve of the product’s surface can be followed with our spring-loaded brush mount). Under the picture is a Button link to our Gallery focusing on Oval-Sided Label applications. Below that button is General LabelOn™ features and specifications. Being a LabelOn™ Modular label machine for bottles, the option to add modules at the time of order or aftermarket allows for the Oval Bottle and Round bottle applications with a very quick product change-over.
Don’t be scared by our competitor quotes for equipment that looks like ours – which is unlikely to match our performance – all our clients are delighted in the value our equipment represents.
- Fast changeovers – There are no tools required for Product Change Over. Large Hand-wheels allow for near-effortless adjustments without the need for motor assist (Motor assists adds to cost/complexity and something else to service). We have elected to keep it simple with position settings choosing a little more expensive etched rulers and scales over “digital indicators” which in time can fail (again another thing to service). The Setup time between jobs is simple and quick.
- Repeatability – All Electronic settings/parameters of your production job can be saved on the touch screen allowing exact repeatability between runs.
- Flexibility – The LabelOn™ is designed in a modular format allowing for multiple configurations to suit your range of Jobs. Both the Mechanics and Electronics are Modular enabling the fast addition and removal of Mechanics AND ELECTRONICS.
- The Colour Touch Screen – has easy-to-use and easy-to-understand buttons. There is also machine status information and troubleshooting menus.
Label minimum thickness – 70micron
Label reel core size 76mm inside diameter
Label reel outside diameter 380mm (std)
Label minimum size – Vertical 15mm/Horizontal 15mm
Label web maximum height – 80/160/215/260mm (selected at the time of order)
Label gap minimum size – 2.5mm
Speed Synchronised to Label Feed with Digital Ratio User Setting (standard)
Dispensing speed minimum – 5m/min (Standard)
Dispensing speed maximum – 30m/min (Standard)
Label accuracy ± 0.75mm – not including variations due to the Bottles or Labels
Stepper motor drive – 5 Phase – Note older machine designs use a 2 Phase Motor that is more Coarse and Hot in operation
Missing label detection (Standard)
Low-level roll detection (Standard)
Un-locked Drive Roller Assembly alarm (Standard)
Clear label gap sensor (optional)
Label verification (optional)
Conveyor speed 5 – 30 m/min (Standard)
Conveyor Height 820mm – 870 mm (Standard)
Conveyor Length 3000 mm (Standard)
Conveyor material – Plastic Slat/Stainless Slat/ PU Belt/Rollers
Conveyor widths – 105/210 (Standard)
Conveyor with Cups/Pucks (Optional)
Conveyor Non Stalling Motor Drive with Continuous Speed Feedback (Standard)
Wrap module (80% wrap or less)
Round Bottle Orientation System (Up to 100% Wrap; Suits Bottles with Handles, Hand Grips or View Strips)
Overhead conveyor – Servo Motor Driven with Multiple spring-loaded backing plates
Single & Dual Scroll / Product Positioning
(round & oval bottles)
Wind in/out and up/down Bottle Separator
Spring Loaded wipers
Secondary Impression rollers – Driven or Idler
Top and bottom label placements
Side grip twin belt transfer system
Warning Beacon – Standard
Coder – thermal or inkjet
Third Label Head (Usually for neck spot labels)
Pneumatic Product Spacing Gate (This Optimises Speed with Orientation Module Labelling)
