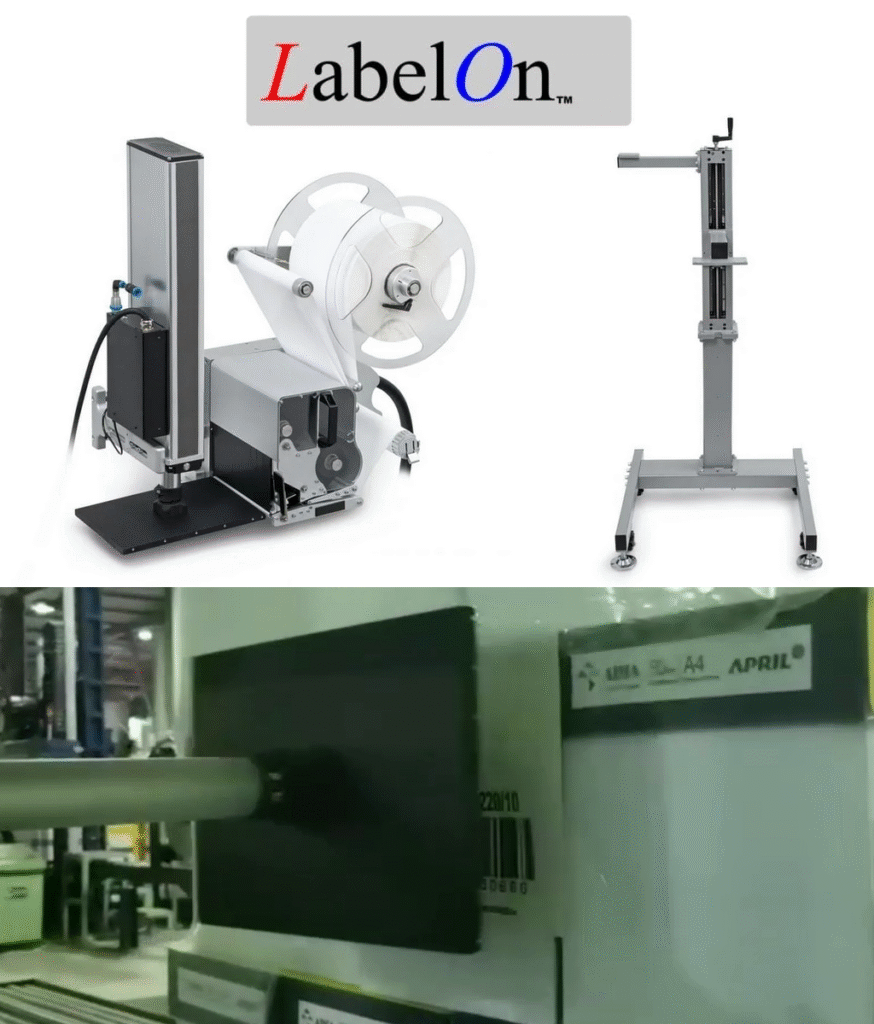

Model AT200
With the AT200 you have the ideal solution for large box or single pallet labeling. It is very easy to create layouts with variable barcodes through the Label edit software included. You can also use simple programming instructions to achieve variable data and bar code editing.
Pallets or large boxes with A4
Portrait or landscape labels.
What you see is what you get, Label information.
Displayed on a 7-inch color screen in real time.
Technical Data：
Applicator: Tamp/Blow, Blow can be switched off
Tamp size: 3 standard sizes, customized available.
Print Speed: 150mm/s
Resolution: 300dpi
Interface: RS232，USB，Ethernet，WIFI Option
Dimensions:
640×750×318mm (l×h×w) – P&A
402×150×290mm (l×h×w) – PCU
Barcode Handling:
Code128, Code39 etc, GS1 Code
QR code, DM, Pdf417, Hanxin etc
Controller functions:
Online & Standalone operation,
7-inch color display and touchscreen
10 input, 10 outputs. Real time clock,
counters, date offsets, multi-language,
Label Preview in real time,
Multi-Fonts download…
Fast Facts：
| Printer: | 8” thermal transfer |
| Application: | Side, Top or Bottom labeling |
| Stationary or moving objects. | |
| Label Size: | 150×210mm – 210×300mm |
| Consumables： | 600M |
| Distance: | 0-360mm (Multiple lengths available) |
| Available in both left & right-hand versions. |
Other Accessories:
- Low Label Detection
- Label on applicator pad Check
- Check Scanners (Option)
- Alarm – flashing light/beacon (Option)
