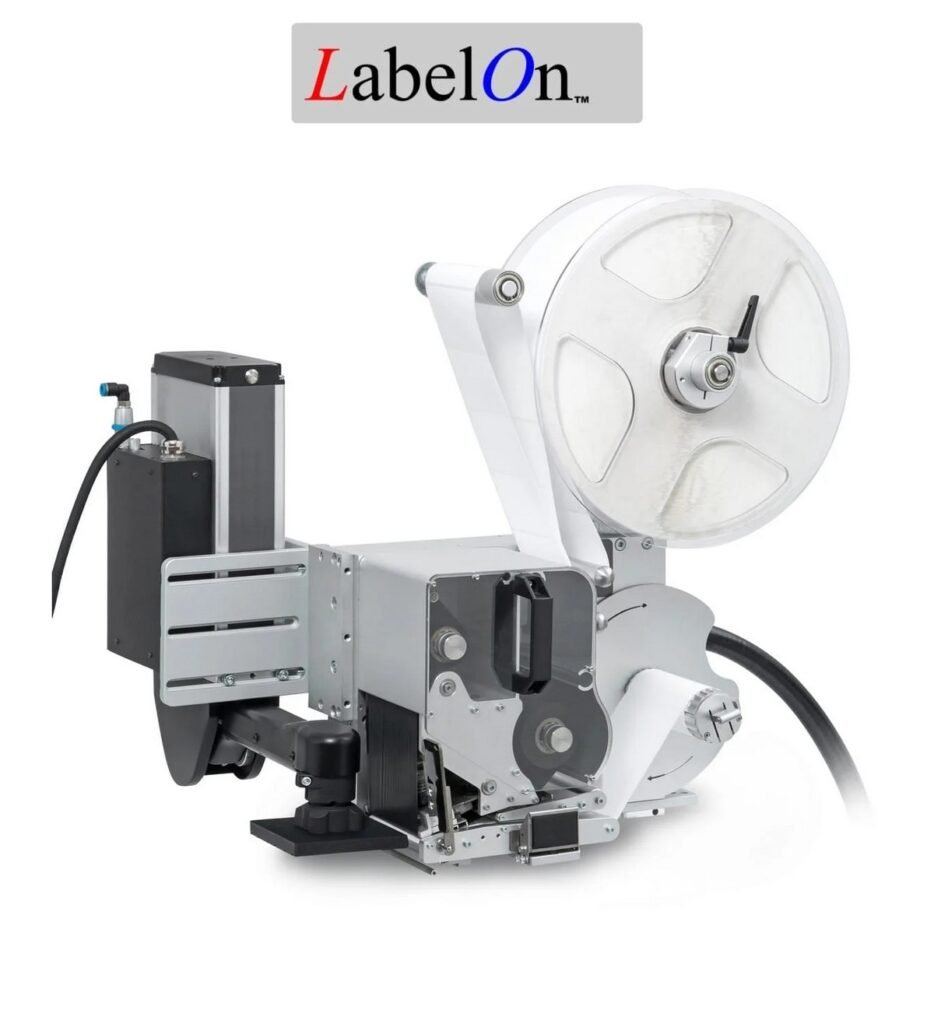

Model FORB100
The FORB100 is a flexible “multi-purpose” Print & apply solution that suits many applications within box and product labeling.
meeting the demands for both accuracy and speed.
It is very easy to create layouts with variable barcodes through the Label edit software. You can also use simple programming
Instructions for achieving variable data and barcode editing.
Box, tray, and parcel labeling. Applies to both
moving and stationary products.
What you see is what you get. Label information
It is displayed on 7 7-inch color screen in real time.
Technical Data：
Applicator: Tamp/Blow, Blow can be switched off
Tamp size: 6 standard sizes, customized available.
Print Speed: 200mm/s
Resolution: 300dpi
Interface: RS232，USB，Ethernet，WIFI Option
Dimensions:
588×625×280mm (l×h×w) – P&A
402×150×290mm (l×h×w) – PCU
Barcode Handling:
Code128, Code39 etc, GS1 Code
QR code, DM, Pdf417, Hanxin etc
Controller functions:
Online & Standalone operation,
7-inch color display and touchscreen
10 input, 10 outputs. Real time clock,
counters, date offsets, multi-language,
Label Preview in real time,
Multi-Fonts download…
Fast Facts：
Printer: 4” thermal transfer
Application:
Side, Top or Bottom labeling
Stationary or moving objects.
Labelsize: 30×40mm – 110×110mm
Consumables： 600M
Distance: 0-160mm (Multiple lengths available)
Available in both left & right-hand versions.
Other Accessories:
- Low Label Detection
- Label on applicator pad Check
- Check Scanners (Option)
- Alarm – flashing light/beacon (Option)
